Arduino UNO akan digunakan untuk membaca data analog yaitu suhu dan kelembaban dengan sensor suhu DS1820 serta DHT11. Hasil dari pembacaan akan ditampilkan ke LCD Nokia tipe 5110 dengan tampilan nilai dan grafik batang. Jenis LCD ini seperti yang dipakai tampilan pada HP Nokia 5110. LCD Nokia ini telah didukung oleh pin SPI (Serial Peripheral Interface), sehingga coding dari program relatif mudah dengan menggunakan komunikasi SPI.
Spesifikasi dasar LCD Nokia 5110
- Ukuran 84*48
- Tegangan 3,3 V
- Controller : PCD8544
Kebutuhan Hardware
- Arduino UNO Board
- Modul LCD Nokia 5110
- Sensor DHT11
- Sensor suhu DS1820
- Power Supply +5 Vdc
LCD Nokia 5110 | Source
Schematic
Koneksi Arduino dengan LCD Nokia 5110

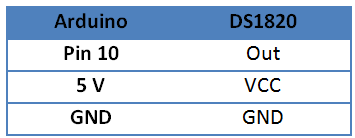

Koneksi Arduino dengan Sensor DS1820
Koneksi Arduino dengan Sensor DHT11
Source Code/Sketch
Jalannya Alat
KAMI MELAYANI JASA PEMBUATAN HARDWARE ATAU SOFTWARE BERBASIS ARDUINO
KONTAK KAMI 085743320570 (adi sanjaya)
Koneksi Arduino dengan LCD Nokia 5110
Koneksi Arduino dengan Sensor DS1820
Koneksi Arduino dengan Sensor DHT11
Source Code/Sketch
//Celsius to Fahrenheit conversion
double Fahrenheit(double celsius)
{
return 1.8 * celsius + 32;
}
//Celsius to Kelvin conversion
double Kelvin(double celsius)
{
return celsius + 273.15;
}
double dewPoint(double celsius, double humidity)
{
//double RATIO = 373.15 / (273.15 + celsius); // RATIO was originally named A0, possibly confusing in Arduino context
double SUM = -7.90298 * (RATIO - 1);
SUM += 5.02808 * log10(RATIO);
SUM += -1.3816e-7 * (pow(10, (11.344 * (1 - 1/RATIO ))) - 1) ;
SUM += 8.1328e-3 * (pow(10, (-3.49149 * (RATIO - 1))) - 1) ;
SUM += log10(1013.246);
double VP = pow(10, SUM - 3) * humidity;
double T = log(VP/0.61078); // temp var
return (241.88 * T) / (17.558 - T);
}
// delta max = 0.6544 wrt dewPoint()
// 5x faster than dewPoint()
// reference: http://en.wikipedia.org/wiki/Dew_point
double dewPointFast(double celsius, double humidity)
{
double a = 17.271;
double b = 237.7;
double temp = (a * celsius) / (b + celsius) + log(humidity/100);
double Td = (b * temp) / (a - temp);
return Td;
}
#include <dht11.h>
dht11 DHT11;
#define DHT11PIN 2
#include <OneWire.h>
#include <DallasTemperature.h>
// Data wire is plugged into port 2 on the Arduino
#define ONE_WIRE_BUS 10
// Setup a oneWire instance to communicate with any OneWire devices (not just Maxim/Dallas temperature ICs)
OneWire oneWire(ONE_WIRE_BUS);
// Pass our oneWire reference to Dallas Temperature.
DallasTemperature sensors(&oneWire);
#include <Adafruit_GFX.h>
#include <Adafruit_PCD8544.h>
// pin 7 - Serial clock out (SCLK)
// pin 6 - Serial data out (DIN)
// pin 5 - Data/Command select (D/C)
// pin 4 - LCD chip select (CS)
// pin 3 - LCD reset (RST)
Adafruit_PCD8544 display = Adafruit_PCD8544(7, 6, 5, 4, 3);
#define Backlight_Pin 9
void setup()
{
// DS18B20
sensors.begin();
// Nokia 5110 display
display.begin();
display.setContrast(50);
pinMode(Backlight_Pin, OUTPUT);
pinMode(0, INPUT);
display.clearDisplay();
display.setTextSize(1);
display.setTextColor(BLACK);
display.setCursor(0,0);
display.println("Ready");
display.display();
}
float dht11_temperature = 0;
float dht11_humidity = 0;
float ds18b20_temperature = 0;
#define TEMP_SIZE LCDWIDTH
float temp[TEMP_SIZE] = {0.0};
int temp_pos = 0; // position in circular buffer above
void loop()
{
int chk = DHT11.read(DHT11PIN);
switch (chk)
{
case DHTLIB_OK:
break;
case DHTLIB_ERROR_CHECKSUM:
break;
case DHTLIB_ERROR_TIMEOUT:
break;
default:
break;
}
dht11_humidity = (float)DHT11.humidity;
dht11_temperature = (float)DHT11.temperature;
sensors.requestTemperatures(); // Send the command to get temperatures
sensors.requestTemperatures(); // Send the command to get temperatures
ds18b20_temperature = sensors.getTempCByIndex(0);
temp[temp_pos] = ds18b20_temperature;
display.clearDisplay();
display.setCursor(0,0);
display.print(dht11_temperature, 0);
display.print("C ");
display.print(dht11_humidity, 0);
display.print("% ");
display.print(ds18b20_temperature, 2);
display.print("C");
float min = temp[0], max = temp[0];
for(int i = 0; i < TEMP_SIZE; i++) {
if (temp[i] < min && temp[i] > 0) min = temp[i];
if (temp[i] > max) max = temp[i];
}
// draw right to left so most recent value is on the right
for(int x = TEMP_SIZE - 1; x >= 0; x--) {
int pos = ( x + temp_pos + 1 ) % TEMP_SIZE;
if ( temp[pos] > 0 ) {
int y = ( ( temp[pos] - min ) / ( max - min ) ) * ( LCDHEIGHT - 10 );
display.drawLine(x, LCDHEIGHT - y, x, LCDHEIGHT, BLACK);
}
}
// refresh LCD
display.display();
// pulse display backlight
int backlight = 0;
float old_temp = temp[(temp_pos + TEMP_SIZE - 1) % TEMP_SIZE];
if ( ds18b20_temperature < old_temp ) {
backlight = 32;
} else if ( ds18b20_temperature > old_temp ) {
backlight = 255;
}
analogWrite(Backlight_Pin, backlight);
delay(2000);
if ( ++temp_pos > TEMP_SIZE ) temp_pos = 0;
}
double Fahrenheit(double celsius)
{
return 1.8 * celsius + 32;
}
//Celsius to Kelvin conversion
double Kelvin(double celsius)
{
return celsius + 273.15;
}
double dewPoint(double celsius, double humidity)
{
//double RATIO = 373.15 / (273.15 + celsius); // RATIO was originally named A0, possibly confusing in Arduino context
double SUM = -7.90298 * (RATIO - 1);
SUM += 5.02808 * log10(RATIO);
SUM += -1.3816e-7 * (pow(10, (11.344 * (1 - 1/RATIO ))) - 1) ;
SUM += 8.1328e-3 * (pow(10, (-3.49149 * (RATIO - 1))) - 1) ;
SUM += log10(1013.246);
double VP = pow(10, SUM - 3) * humidity;
double T = log(VP/0.61078); // temp var
return (241.88 * T) / (17.558 - T);
}
// delta max = 0.6544 wrt dewPoint()
// 5x faster than dewPoint()
// reference: http://en.wikipedia.org/wiki/Dew_point
double dewPointFast(double celsius, double humidity)
{
double a = 17.271;
double b = 237.7;
double temp = (a * celsius) / (b + celsius) + log(humidity/100);
double Td = (b * temp) / (a - temp);
return Td;
}
#include <dht11.h>
dht11 DHT11;
#define DHT11PIN 2
#include <OneWire.h>
#include <DallasTemperature.h>
// Data wire is plugged into port 2 on the Arduino
#define ONE_WIRE_BUS 10
// Setup a oneWire instance to communicate with any OneWire devices (not just Maxim/Dallas temperature ICs)
OneWire oneWire(ONE_WIRE_BUS);
// Pass our oneWire reference to Dallas Temperature.
DallasTemperature sensors(&oneWire);
#include <Adafruit_GFX.h>
#include <Adafruit_PCD8544.h>
// pin 7 - Serial clock out (SCLK)
// pin 6 - Serial data out (DIN)
// pin 5 - Data/Command select (D/C)
// pin 4 - LCD chip select (CS)
// pin 3 - LCD reset (RST)
Adafruit_PCD8544 display = Adafruit_PCD8544(7, 6, 5, 4, 3);
#define Backlight_Pin 9
void setup()
{
// DS18B20
sensors.begin();
// Nokia 5110 display
display.begin();
display.setContrast(50);
pinMode(Backlight_Pin, OUTPUT);
pinMode(0, INPUT);
display.clearDisplay();
display.setTextSize(1);
display.setTextColor(BLACK);
display.setCursor(0,0);
display.println("Ready");
display.display();
}
float dht11_temperature = 0;
float dht11_humidity = 0;
float ds18b20_temperature = 0;
#define TEMP_SIZE LCDWIDTH
float temp[TEMP_SIZE] = {0.0};
int temp_pos = 0; // position in circular buffer above
void loop()
{
int chk = DHT11.read(DHT11PIN);
switch (chk)
{
case DHTLIB_OK:
break;
case DHTLIB_ERROR_CHECKSUM:
break;
case DHTLIB_ERROR_TIMEOUT:
break;
default:
break;
}
dht11_humidity = (float)DHT11.humidity;
dht11_temperature = (float)DHT11.temperature;
sensors.requestTemperatures(); // Send the command to get temperatures
sensors.requestTemperatures(); // Send the command to get temperatures
ds18b20_temperature = sensors.getTempCByIndex(0);
temp[temp_pos] = ds18b20_temperature;
display.clearDisplay();
display.setCursor(0,0);
display.print(dht11_temperature, 0);
display.print("C ");
display.print(dht11_humidity, 0);
display.print("% ");
display.print(ds18b20_temperature, 2);
display.print("C");
float min = temp[0], max = temp[0];
for(int i = 0; i < TEMP_SIZE; i++) {
if (temp[i] < min && temp[i] > 0) min = temp[i];
if (temp[i] > max) max = temp[i];
}
// draw right to left so most recent value is on the right
for(int x = TEMP_SIZE - 1; x >= 0; x--) {
int pos = ( x + temp_pos + 1 ) % TEMP_SIZE;
if ( temp[pos] > 0 ) {
int y = ( ( temp[pos] - min ) / ( max - min ) ) * ( LCDHEIGHT - 10 );
display.drawLine(x, LCDHEIGHT - y, x, LCDHEIGHT, BLACK);
}
}
// refresh LCD
display.display();
// pulse display backlight
int backlight = 0;
float old_temp = temp[(temp_pos + TEMP_SIZE - 1) % TEMP_SIZE];
if ( ds18b20_temperature < old_temp ) {
backlight = 32;
} else if ( ds18b20_temperature > old_temp ) {
backlight = 255;
}
analogWrite(Backlight_Pin, backlight);
delay(2000);
if ( ++temp_pos > TEMP_SIZE ) temp_pos = 0;
}
Jalannya Alat
Pada LCD akan tampil nilai suhu dan kelembaban serta tampilan dalam bentuk grafik. Kemudian menampilkan nilai suhu/temperatur yang diukur oleh sensor.
Video untuk Project II - 27. Monitoring Suhu dan Kelembapan dengan Tampilan Grafik Batang pada LCD Nokia 5110 berbasis Arduino
